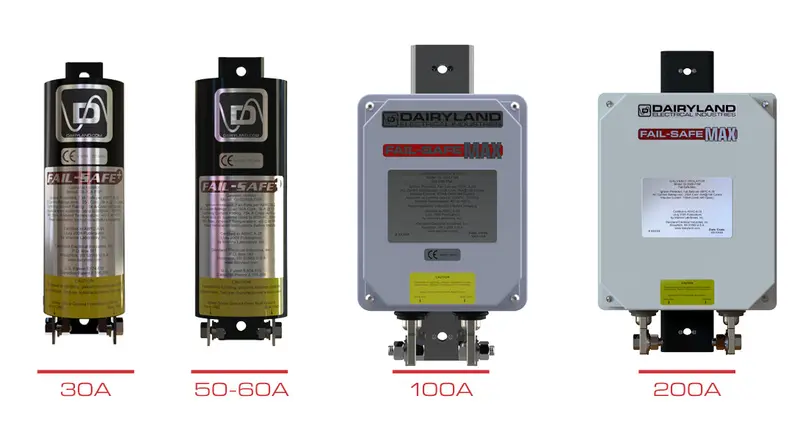

Dairyland GI-100A-FSM 100A Galvanic Isolator for Marine Vessels and Docking Systems

Description

100A

GI-100A-FSM  (Also Suitable for Dual 50A Service)

AC  Fault Current Rating

5kA for 198 cycles

KEY FEATURES

• Verified Fail-Safe construction

• Highest AC fault current ratings

• No monitoring system required per ABYC A-28

•  Rated for lightning current. No other known galvanic isolators have published lightning current ratings. ADDITIONAL UNIQUE FEATURES

• Ignition protected

• Longest warranties offered in the industry

• Compact design

• Designed for cool operation – no heat sinks needed •  Prevents the flow of galvanic current with super imposed AC current well above the 3A minimum required by A-28

•  Designed to meet stringent NEC land-based grounding requirements (exceeds marine requirements)

Peak Voltage

All Models: +/- 1.0V

Lightning Surge Current

30A Models: 75kA Peak (4 x 10µs waveform)
All Other Models: 100kA Peak (4 x 10µs waveform)

Certifications

Imanna Labs:
Certified to July 2008 changes to ABYC A-28 (Effective date 2009)
Certified to fail-safe criteria Ignition Protected CE Marine – ISO 8846
