Humminbird XPTH-14 HW MSI-T Plastic Thru-Hull Transducer – High-Definition Imaging

Description

XPTH 14 HW MSI T Plastic Thru Hull Transducer

SOLIX MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP plastic thru hull transducer. This transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design and 30’ cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA SI+ GPS G2, SOLIX 12 CHIRP MEGA SI+ GPS G2, SOLIX 15 CHIRP MEGA SI+ GPS G2
• MEGA Side Imaging Frequencies – Max Range (side-to-side): 455kHz: 440-500 kHz – 800ft (244m), 800kHz: 790-850 kHz – 250ft (76m), MEGA SI+: 1075-1150 kHz – 400ft (122m)
• MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 250ft (76m), MEGA DI+: 1075-1150 kHz – 200ft (61m)
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• Dimensions: L 8.4″ x W 2.3″ x D 1.0″ – Stem Length 5″, Stem Diameter 1″
• 1-Year Limited Warranty

Specifications:

• Imagining: Standard/Down/Side
• Chirp: High Wide
• Cable Length (Feet): 30′
• Speed Included: No
• Mounting Style: Thru-Hull
• Temperature: Yes

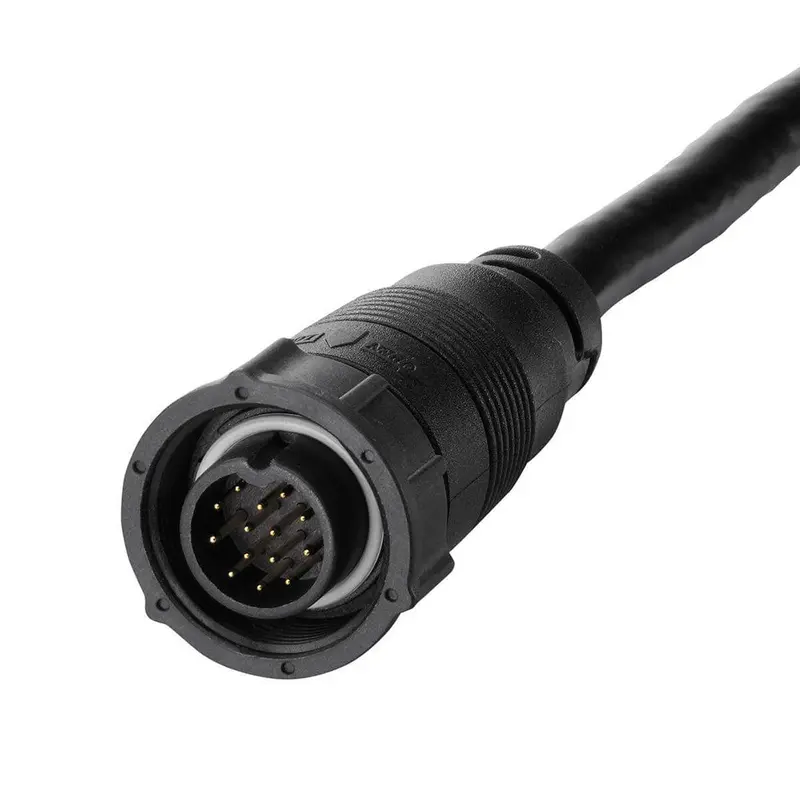

• Pins: 14
• Box Dimensions: 4″H x 10″W x 15″L WT: 2.9 lbs
• UPC: 082324053283
