Lenco 12″ x 9″ Edge-Mount Electro-Polished Trim Tab Kit (12V)

Description

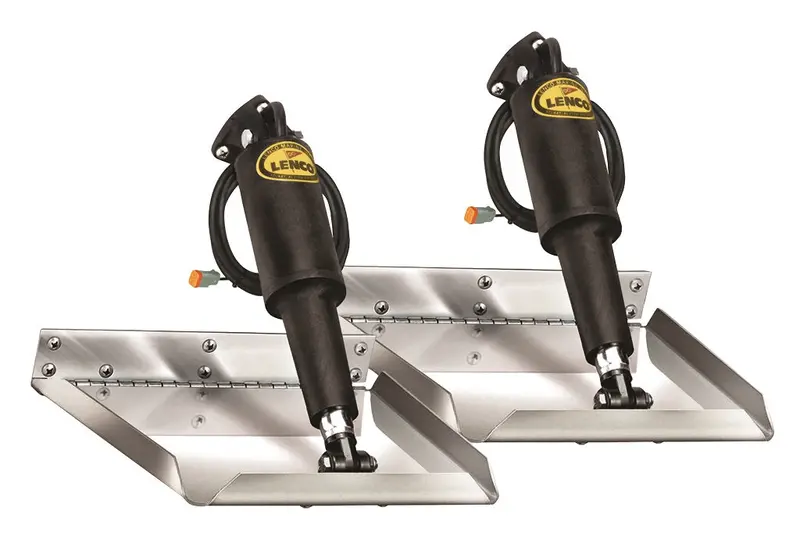

Lenco 12×9″ Edge Mount Trim Tab Kit 12v Electro Polished

Model: 15115-101

All the same features of the Edge Mount series with the addition of Electro-Polished blades. Electro-Polish adds a mirror finish and the ultimate corrosion protection. Actuator mounts at the trailing edge of these 12 in (30.5 cm) blades giving them a 3 in (7.6 cm) lower mounting height. Boat Lengths 14 feet (4.3 m) to 30 feet (9.1 m). Blades are constructed of Electro-Polished 12 gauge (2.7 mm) laser cut 304 stainless steel with a 1 in (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge & 1/8 in (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Specifications

L” X W”

12 in X 9 in
Boat Length	14 feet – 18 feet (4.27m – 5.49m)
Hinge Height	2 in (5.1 cm)
Min Transom Height	11 in (27.9 cm)

What’s in the Box:

• (2) 12-gauge stainless steel Electro-Polished blades
• (2) 15054-001 actuators with 6 feet (1.8 m) leads and Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses – 20 feet (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
• Lenco owner’s/installation manual
• Stainless steel mounting hardware

“
