Scanstrut DS30-P-5 Vertical Cable Seal – 5-Pack for High-Density Installation Projects

Description

DS30-P-3 Vertical Cable Seal *5-Pack

Scanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables.

Features:

• Watertight installation – 100% waterproof with an IP68 rating

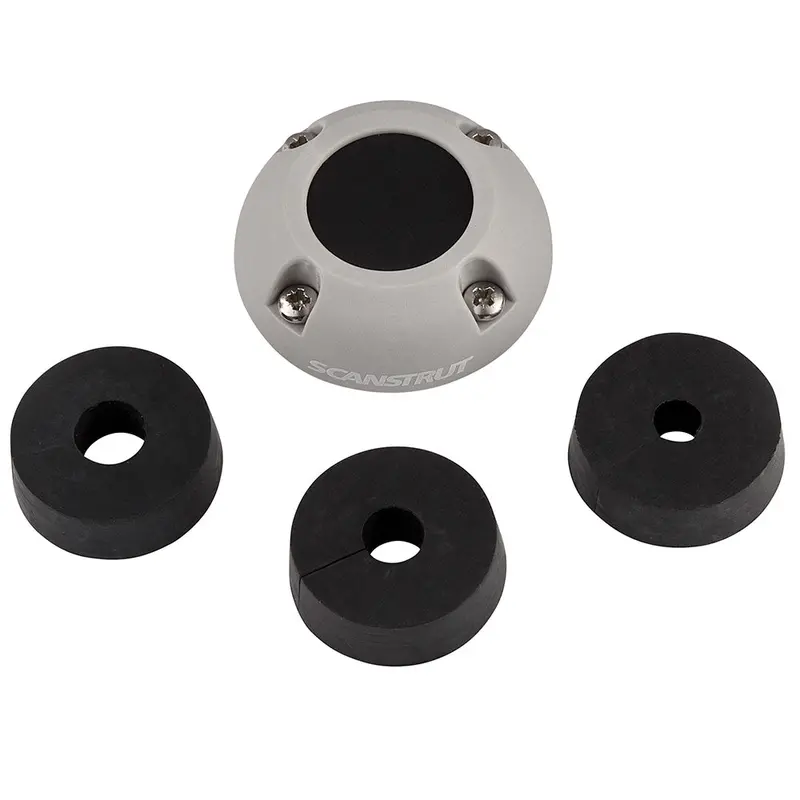

• Easy and reliable installation – each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors – split-seal option does not require connector removal during installation.
•  Multi-Functional Dome Shape – the aesthetic dome-shaped profile provides a stronger, impact-resistant design and the outer dome provides an additional water shield.

Technical Specifications:

• Fits cable size (diameter) – .35″ to .55″ (9 – 14 mm)
• Fits connector size up to 1.18″ (30 mm) in diameter
• Height – .81″ (20.5 mm)
• Color – Grey
• Orientation – Vertical
• Material – ASA Plastic

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as a Five (5) Pack

Specifications:

• Type: Deck Seal
• Box Dimensions: 1″H x 4″W x 6″L WT: 2 lbs

Quick Guide (pdf)
